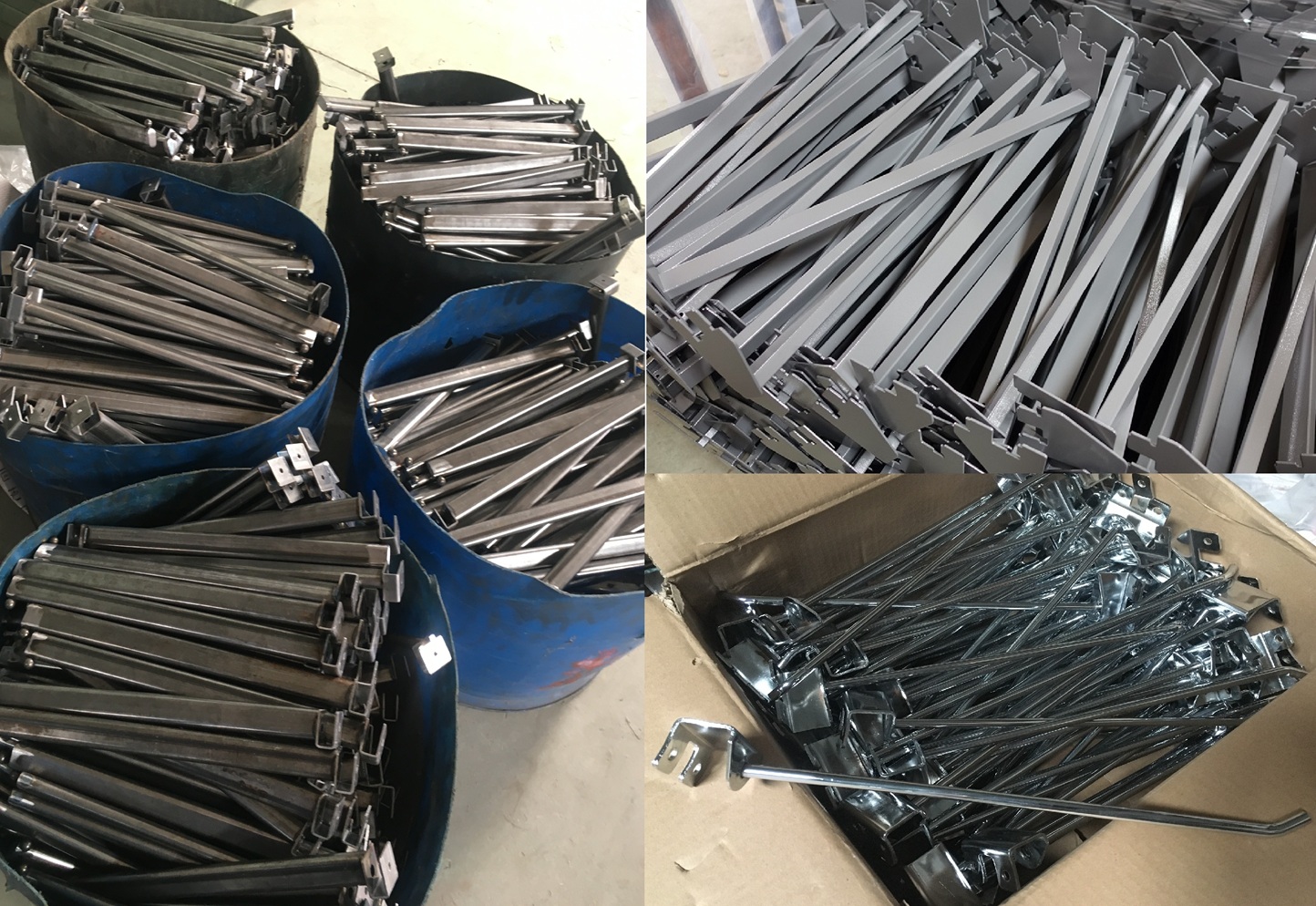

A successful retail display fixture prototype begins with a clear brief. For global buyers sourcing retail display hooks, slatwall hooks, pegboard hooks, or display brackets, sharing the right product, fixture, and performance details helps an OEM manufacturer evaluate the design before sampling and production. Waigaoqiao works with overseas brands, wholesalers, and manufacturers on OEM retail display fixture projects; the preparation checklist below can help both sides discuss the requirements efficiently.
*Editorial note: No original article or customer reviews were provided with the brief. This article does not include customer quotations or claim specific factory certifications, test results, or capabilities. Confirm project-specific services and criteria directly with Waigaoqiao.*
A prototype is not simply a miniature production order. It is a chance to check whether a design fits its intended fixture, works with the merchandise, and meets agreed visual and functional requirements.
A drawing may show the shape of a hook but omit the panel interface, material, finish, product weight, or packaging dimensions. Those omissions can lead to revisions—or to a sample that looks right but does not work in the actual retail environment.
Before requesting a prototype, aim to clarify four things:
- What the fixture must do: Display which product, in what quantity, and in what retail setting?
- What it attaches to: Which panel, rail, bracket, or existing fixture will it use?
- What must be verified: Fit, appearance, function, load performance, or all of these?
- What production needs to support: Target quantity, packaging, finish, inspection expectations, and delivery destination.
A complete brief does not need to answer every design question. It should make clear what is already decided and what the supplier is being asked to help develop.
Describe the item the fixture will display. Include its dimensions, weight, packaging, and method of hanging or attachment. For a retail display hook, the shape and position of the package's hang hole can influence prong style and spacing.
If possible, provide a physical product sample or clear photographs showing the front, back, and hanging feature. A supplier can make a better design assessment when the actual merchandise—not just its nominal weight—is understood.
Identify the mounting system and provide the relevant dimensions. Do not rely only on labels such as "standard pegboard" or "slatwall"; the panel or interface intended for the project should be identified and checked.
Where available, share:
- The panel or fixture drawing.
- Photos showing the mounting area.
- Critical measurements or a physical panel sample.
- The related parts the new fixture must connect to.
Compatibility is a project requirement, not something to assume from a product name. A prototype should be checked against the intended panel or assembly.
Send the most useful information available, even if the design is not finalized. That could be a CAD drawing, dimensioned PDF, hand sketch, reference product, or combination of these.
For a CAD drawing, include the units, revision, and any dimensions that control fit. If the file is an early concept, label it accordingly so the manufacturer knows which details are fixed and which are open for discussion.
State the expected order quantity, likely repeat-order volume, packaging needs, destination market, and target schedule. These details help the supplier consider the prototype in the context of the intended OEM manufacturing program.
Also identify any requirements that need customer approval, such as color, finish, branding, label holders, or individual packaging.
The scope of a prototype should match the question the buyer needs answered. A simple fit check may not require the same level of development as a fully finished sample intended for a retail review.
For slatwall hooks, confirm the panel profile and mounting interface. Specify usable projection—the distance from the panel to the point where merchandise hangs—and check whether the hook clears neighboring products or fixture parts.
A prototype review should verify that it engages the intended panel and presents the actual product in the required position.
For pegboard hooks, provide the intended hole pattern and relevant panel details. Check installation and retention on the actual or representative panel. Test with the merchandise package to assess spacing, loading, and removal.
A hook that fits one sample panel is not automatically verified for every pegboard construction. Record which panel was used during approval.
For display brackets, show the components they support and how the bracket attaches to the rest of the fixture. Review the mating dimensions, orientation, assembly sequence, and intended direction of loading.
A bracket should be assessed as part of the assembly. Inspecting the bracket by itself may not reveal clearance, alignment, or interaction issues with the supported part.
A disciplined review prevents vague feedback and makes design changes easier to track.
1. Confirm the brief. Agree on the intended merchandise, mounting system, design priorities, and open questions.
2. Review the proposed design. Check critical dimensions, materials, finish, and interfaces before the sample is made.
3. Test the prototype in context. Use the intended panel, fixture, and merchandise where possible.
4. Record specific feedback. Identify the issue, location, and requested change rather than giving general comments.
5. Approve a controlled revision. Link approval to a dated drawing or sample reference.
6. Define production checks. Agree which characteristics must be inspected before the order is made or shipped.
This process is particularly useful when buyers and manufacturers are working across time zones. A shared drawing revision and written approval reduce the chance that each party is acting on a different version.
Quality control begins with clear acceptance criteria. Before production, the buyer and OEM supplier should identify what needs to be checked and how the result will be judged.
For a retail display hook or bracket, the project may require checks for:
- Dimensions: Critical lengths, mounting features, and mating points.
- Fit: Installation on the specified panel or assembly.
- Appearance: Finish, color, and visible defects.
- Function: Merchandise loading, removal, and display position.
- Packaging: Protection, labeling, and pack quantity.
For load testing, agree on the tested assembly and conditions before interpreting the result. Specify the panel, installation method, load, direction, duration, and pass/fail criteria. A result from one hook-and-panel combination should not be presented as a universal capacity rating.
If a buyer needs a particular performance threshold or safety factor, put it in the project specification and confirm how it will be tested. Do not treat a test as evidence of compliance with a standard unless the relevant standard and test method have actually been established.
Useful prototype feedback is observable and actionable. Instead of saying "the hook is not right," specify what happened and what needs to change.
For example:
- "The hook does not engage the supplied panel; please review the mounting dimensions shown in drawing revision B."
- "The package tilts forward when hung; please assess the prong arrangement using the supplied product sample."
- "The bracket interferes with the adjacent shelf during assembly; please review the clearance in the assembled view."
When possible, add annotated photos or measurements. Keep design comments, approved changes, and drawing revisions together so the production version can be traced back to the agreed sample.
Incomplete fixture information: Share a panel sample, drawing, or critical dimensions before requesting a fit-sensitive prototype.
No actual merchandise available: Provide the product or package dimensions and hang-hole details so the sample can be reviewed for real use.
Unclear design status: Mark files as concept, review, or approved, and identify the current revision.
Feedback without measurements: Describe the issue and location, then show the required change on the drawing or photo.
Unagreed testing expectations: Define the load-test configuration and acceptance criteria before testing.
These practical steps make a prototype more than a visual model: they turn it into a documented decision point for the OEM project.
This draft intentionally contains no images or tables. For the published page, consider adding:
- A prototype preparation checklist graphic near the required-input section.
- An annotated hook drawing showing mounting dimensions and usable projection.
- A side-by-side product-family illustration distinguishing slatwall hooks, pegboard hooks, and display brackets.
- A short prototype review video demonstrating sample fit on the specified fixture.
Use real project visuals only with permission, and label any test demonstration with the conditions shown.
A well-prepared prototype brief helps an OEM supplier understand the real merchandising application—not just the part shown in CAD. Share the drawing or sample, product details, fixture interface, quantity, and required checks to make the first design review more productive.
Contact Waigaoqiao with your CAD file, reference sample, or project brief to discuss custom retail display hooks, slatwall hooks, pegboard hooks, and display brackets for your next fixture program.
1. What should I send to request a retail fixture prototype?
Send a drawing or sketch, product and package details, fixture information, target quantity, finish requirements, and any required testing or inspection criteria.
2. Do I need a completed CAD drawing before contacting an OEM manufacturer?
No. A sketch, photographs, or sample can help start the discussion. Clearly identify which design details are final and which need development.
3. How can I verify that a pegboard or slatwall hook will fit?
Provide the intended panel or its critical dimensions, then check the prototype on that panel. Record the fixture used for sample approval.
4. What should a retail display hook load test specify?
Agree on the hook and panel, installation method, load, loading direction, duration, and pass/fail criteria before testing.
5. How can we avoid confusion between sample approval and mass production?
Approve a dated drawing revision or identified physical sample, and define the critical production inspection points in writing.
6. Can a display bracket be evaluated separately from the fixture?
It can be reviewed as an individual part, but fit and function should also be checked in the intended assembly with the supported component.
