For international retailers, wholesalers and brand manufacturers, retail display hooks are not simple metal accessories. They are load-bearing components that influence product presentation, shopper safety and the reliability of an entire merchandising system. A hook that bends, breaks, rusts or fits incorrectly can create product loss, store-level complaints and unnecessary replacement costs.
At Waigaoqiao, a Chinese OEM factory specializing in retail display fixtures, we treat quality control as a complete manufacturing process—not as a final visual check. From material selection and custom design to welding, load testing and surface inspection, every stage must support the customer's application and commercial requirements.
This article explains how professional manufacturers evaluate slatwall hooks, pegboard hooks and display brackets, and what B2B buyers should verify before placing an OEM order.

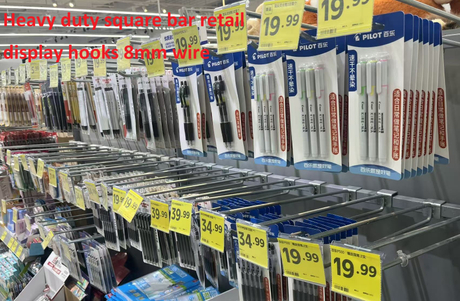

Retail display hooks are commonly used for packaged products, tools, hardware, accessories, toys, stationery and consumer goods. Although their structure may look simple, their performance depends on several factors:
- Material thickness and grade
- Wire diameter or steel strip thickness
- Hook length and projection
- Welding strength
- Mounting compatibility
- Surface treatment
- Product weight and load distribution
- Repeated use in real retail environments
A hook may pass a basic visual inspection but still fail under load. For this reason, a reliable quality system must combine dimensional inspection, functional testing, weld evaluation and coating checks.
In my experience working with display hardware, the most common quality problems are not always dramatic breakages. More often, they appear as:
- Slight deformation after repeated loading
- Poor fit on the customer's slatwall or pegboard
- Sharp edges that damage packaging
- Uneven powder coating
- Weld spatter or visible burn marks
- Surface rust after transportation or humid storage
- Inconsistent batches caused by uncontrolled manual welding
A professional OEM partner should identify these risks before the products reach the customer's distribution network.
## Quality Control Starts with a Clear Product Specification
Before production begins, the buyer and factory should agree on a detailed specification. This document should define the product's design, performance and appearance requirements.
For retail display hooks, the specification may include:
- Overall dimensions
- Hook length and diameter
- Base or mounting plate design
- Hole spacing
- Slatwall insert dimensions
- Pegboard hole compatibility
- Material type
- Surface finish and color
- Maximum working load
- Required safety factor
- Packaging method
- Inspection standards and acceptable tolerances
Slatwall hooks must fit securely into the horizontal grooves of a slatwall panel. If the mounting tab is too thick, too thin or incorrectly angled, the hook may not sit level. A poor fit can cause the hook to tilt forward or pull away from the panel when products are loaded.
Important inspection points include:
- Correct mounting tab dimensions
- Stable contact with the slatwall channel
- Smooth insertion and removal
- Horizontal alignment after installation
- Resistance to upward or forward movement
Pegboard hooks are typically installed through standard perforated panels. The hook must have accurate spacing between mounting prongs, a suitable back support and enough stability to prevent rotation.
Quality checks should confirm:
- Correct prong spacing
- Smooth insertion into pegboard holes
- No excessive looseness
- Proper support against downward movement
- Consistent hook projection across the batch
Display brackets carry shelves, signs, baskets or larger merchandising components. They may experience higher bending forces than a simple hook, especially when the load is positioned away from the panel.
For brackets, inspection should focus on:
- Bracket angle
- Weld placement
- Load-bearing surfaces
- Reinforcement design
- Alignment between left- and right-hand components
- Compatibility with the display system
## Load Testing: Measuring Real-World Performance
Load testing verifies whether a retail display hook can support the specified weight without unacceptable deformation or failure.
A basic test should not only ask, "Does the hook break?" It should also measure whether the hook bends, twists or becomes unstable under load.
A professional factory can establish a repeatable process:
1. Confirm the test sample.
Select samples from the production batch according to the agreed inspection plan.
2. Install the hook correctly.
The hook should be mounted on the same type of slatwall, pegboard or fixture used in the customer's application.
3. Apply the specified load.
Use calibrated weights or a controlled loading device. The load should be positioned to reflect actual product placement.
4. Hold the load for a defined period.
The test duration should be agreed in advance. Longer holding periods can reveal gradual deformation.
5. Inspect the hook after unloading.
Check for permanent bending, cracks, weld separation, coating damage and mounting instability.
6. Record the result.
Test records should include the product code, material, batch number, applied load, duration, result and inspector.
The correct test load depends on the product design and application. A light accessory hook and a heavy-duty tool hook should not be evaluated using the same criteria.
Buyers should distinguish between:
- Working load: The recommended load during normal use.
- Proof load: A higher load used to verify structural performance.
- Failure load: The load at which the component permanently deforms or breaks.
A factory should never promote a failure load as a safe operating load. The appropriate safety margin depends on the product, mounting system, loading direction and customer requirements.
For retail applications, it is also important to consider dynamic loading. Customers may pull products forward, rest their hands on the display or reload the hook repeatedly. A hook that performs well under a static load may behave differently during repeated use.
## Welding Inspection: The Hidden Foundation of Strength
For welded retail display hooks, the weld is often the most critical structural area. A good-looking hook can still be unsafe if the weld has insufficient penetration, poor fusion or inconsistent positioning.
Quality inspectors should look for:
- Incomplete fusion
- Insufficient weld size
- Porosity
- Cracks
- Excessive weld spatter
- Burn-through
- Misalignment
- Sharp weld edges
- Uneven weld appearance
Not every visual imperfection indicates structural failure, but visible defects often signal process instability. Weld inspection should therefore combine appearance checks with functional or destructive testing when appropriate.
To improve consistency, an OEM factory should control:
- Welding method
- Welding current and voltage
- Electrode or wire specification
- Fixture positioning
- Operator training
- Cleaning before welding
- Inspection frequency
- Rework procedures
Welding fixtures are especially important for high-volume production. They help maintain the correct angle and position, reducing variation between individual hooks.
For critical products, the factory may perform sample-based destructive tests. A sample is cut or pulled apart to evaluate the actual weld connection. This does not replace visual inspection, but it can reveal problems hidden beneath the surface.
## Surface Inspection and Corrosion Protection
A retail display hook is often handled by store staff and exposed to humidity, dust, transport friction and repeated contact with product packaging. Surface quality therefore affects both appearance and service life.
Inspectors should evaluate:
- Coating coverage
- Color consistency
- Gloss level
- Surface smoothness
- Scratches and dents
- Rust or oxidation
- Exposed metal
- Sharp edges
- Oil contamination
- Powder accumulation
- Weld areas after coating
Common finishes include powder coating, electroplating, zinc plating and liquid painting. The correct choice depends on the required appearance, corrosion resistance, cost and intended environment.
For powder-coated hooks, quality control may include:
- Coating thickness measurement
- Adhesion testing
- Visual inspection under suitable lighting
- Verification of curing conditions
- Color comparison against an approved sample
A coating that is too thin may provide inadequate protection. A coating that is too thick can affect mounting dimensions and create fitting problems.
Buyers should also approve a golden sample before mass production. This sample becomes a visual reference for color, finish, weld appearance and overall workmanship.
## A Better OEM Quality-Control Workflow
One important improvement over basic supplier inspection is to divide quality control into multiple checkpoints.
The factory verifies:
- Steel or wire diameter
- Material thickness
- Surface condition
- Supplier documentation
- Batch identification
Before mass production, the first completed pieces are checked against the approved drawing and sample.
Inspectors monitor bending, punching, welding and assembly while production is running. This helps identify problems before an entire batch is completed.
Finished products are evaluated for:
- Quantity
- Dimensions
- Appearance
- Function
- Load performance

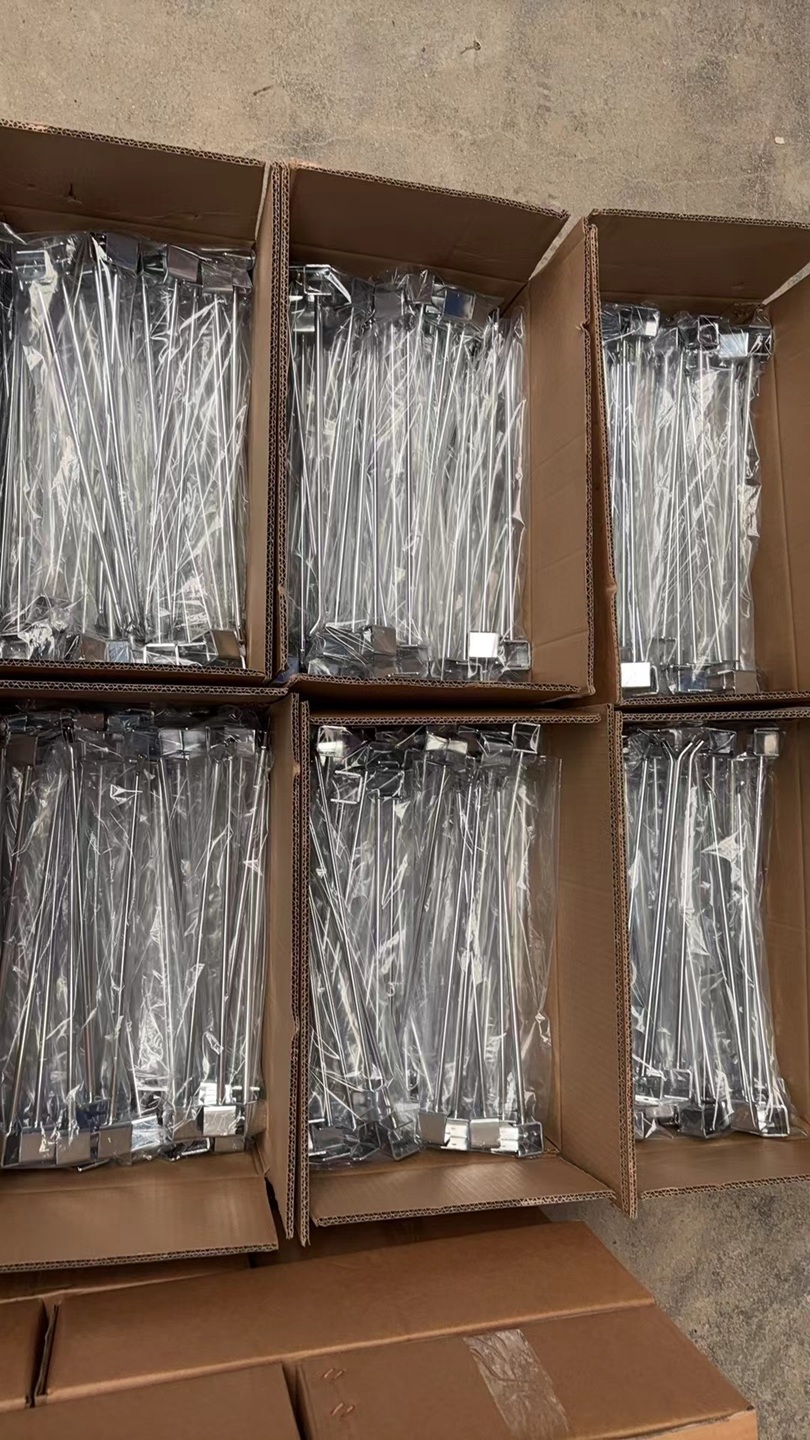

- Packaging
- Product labeling
The shipment should be released only after inspection results meet the agreed acceptance criteria.
This staged approach reduces the risk of discovering major problems at the end of production, when correction is expensive and delivery schedules are already under pressure.
## How Custom Design Reduces Retail Display Problems
Custom design is not limited to changing the color or adding a logo. For B2B buyers, it can improve compatibility, strength and merchandising efficiency.
A custom retail display hook may include:
- Different hook lengths
- Double or multi-tier configurations
- Security features
- Scanning label holders
- Back plates
- Anti-rotation supports
- Special mounting systems
- Custom wire shapes
- Branding or identification marks
The most successful designs begin with the actual retail application. Buyers should provide product dimensions, packaging weight, fixture type, expected loading method and store environment.
At Waigaoqiao, we recommend reviewing the design through a DFM—Design for Manufacturing—process before tooling or mass production. This can identify unnecessary bends, difficult weld locations, weak transitions and costly finishing requirements.
## What B2B Buyers Should Request from an OEM Factory
Before selecting a supplier, ask for clear answers to the following questions:
- What materials are used?
- How is the maximum working load determined?
- Is load testing performed on every batch?
- How are welds inspected?
- Are inspection records available?
- Which surface treatment is recommended?
- Can the factory provide a pre-production sample?
- How are dimensional tolerances controlled?
- What happens if a batch fails inspection?
- Can the factory support custom drawings and packaging?
A dependable supplier should communicate these points clearly rather than offering only a low unit price.
## Frequently Asked Questions
Retail display hooks are used to hang packaged merchandise on slatwall panels, pegboards and other retail fixtures. They are common in hardware, electronics, accessories, tools and general merchandise stores.
Slatwall hooks use a mounting tab or insert that fits into a horizontal panel groove. Pegboard hooks use one or more prongs that fit into perforated holes. Their mounting geometry is not interchangeable.
Load testing verifies whether a hook can support its specified working load without excessive bending, twisting, weld failure or mounting instability.
Buyers should watch for cracks, incomplete fusion, porosity, burn-through, excessive spatter, misalignment and inconsistent weld size.
The best finish depends on the environment, appearance requirements, corrosion exposure and budget. Powder coating is widely used for color and durability, while plating may be preferred for a metallic appearance or specific corrosion-resistance requirements.
Yes. OEM factories can customize dimensions, mounting systems, hook lengths, materials, finishes, packaging and branding according to approved drawings and samples.
An inspection report should normally include the product code, batch number, sample quantity, measured dimensions, appearance results, load-test results, weld findings, packaging condition and final acceptance decision.
## References
The following sources provide background for manufacturing quality, welding quality and conformity assessment. Product-specific acceptance criteria should always be agreed between the buyer and OEM factory.
- [ISO 9001 — Quality management systems](https://www.iso.org/iso-9001-quality-management.html)
- [ISO 3834 — Quality requirements for fusion welding of metallic materials](https://www.iso.org/standard/81561.html)
- [ISO 5817 — Welding imperfections and quality levels](https://www.iso.org/standard/69082.html)
- [ASTM International — Standards and conformity assessment](https://www.astm.org/products-services/standards-and-conformity-assessment.html)
- [ISO/IEC 17025 — Testing and calibration laboratories](https://www.iso.org/ISO-IEC-17025-testing-and-calibration-laboratories.html)
- [International Accreditation Forum — Management system certification](https://iaf.nu/)
## Conclusion and OEM Inquiry
Reliable retail display hooks require more than acceptable appearance. They require controlled materials, accurate dimensions, stable welding, verified load performance and durable surface treatment.
Whether you need slatwall hooks, pegboard hooks or display brackets, Waigaoqiao can support OEM projects from custom design and sampling to mass production and shipment inspection.
Send us your drawings, product photos, dimensions or target application. Our engineering team can recommend a suitable structure, surface finish and quality-control plan for your retail display fixture project.
